 Simplify Integration. Save Space. Support Multiple Motors.

The OMRON M1 Variable Speed Drive is a compact, general-purpose AC drive designed to reduce integration effort, save control panel space, and deliver precision control for multiple motor types. Available in three native networking options.

 AU stock • Direct local support • Next-day dispatch • 24-Month Local Warranty

View Models and Buy Now

Standard (STD) | EtherCat (ECT) | EtherNet Multi-Protocol (EMP)

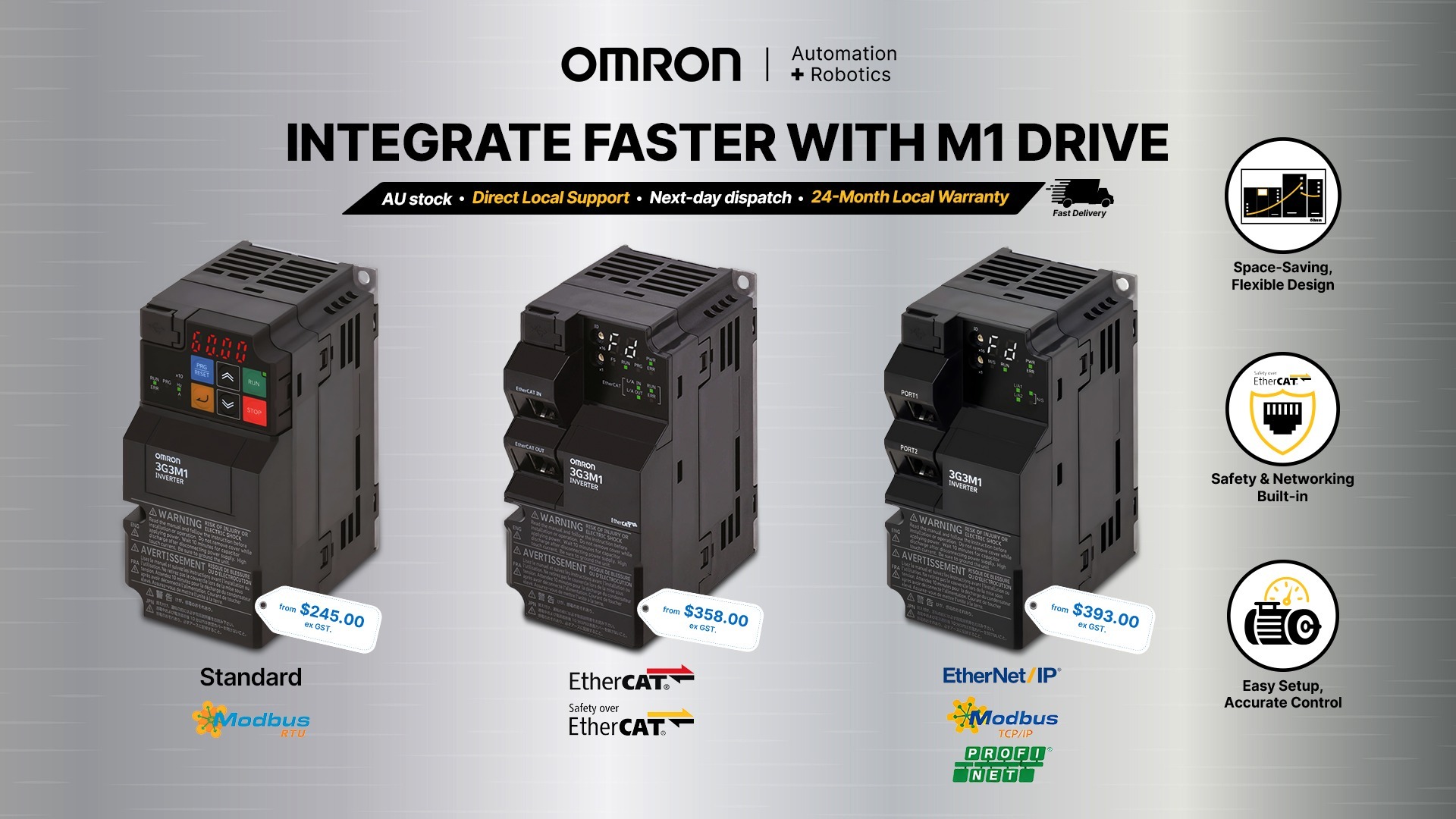

M1 Drive_AU

3 Reasons the New M1 VSD Stands Out

M1 ICONS 3

•    Standard (STD): Modbus RTU built in for cost effective control
•    EtherCAT (ECT): EtherCAT with FSoE safety onboard for real time networking, STO to SIL3 /PL  e
•    EtherNet Multi Protocol (EMP): EtherNet/IP, PROFINET, and Modbus TCP built in
•    No additional option cards required across all three variants

M1 ICONS 2

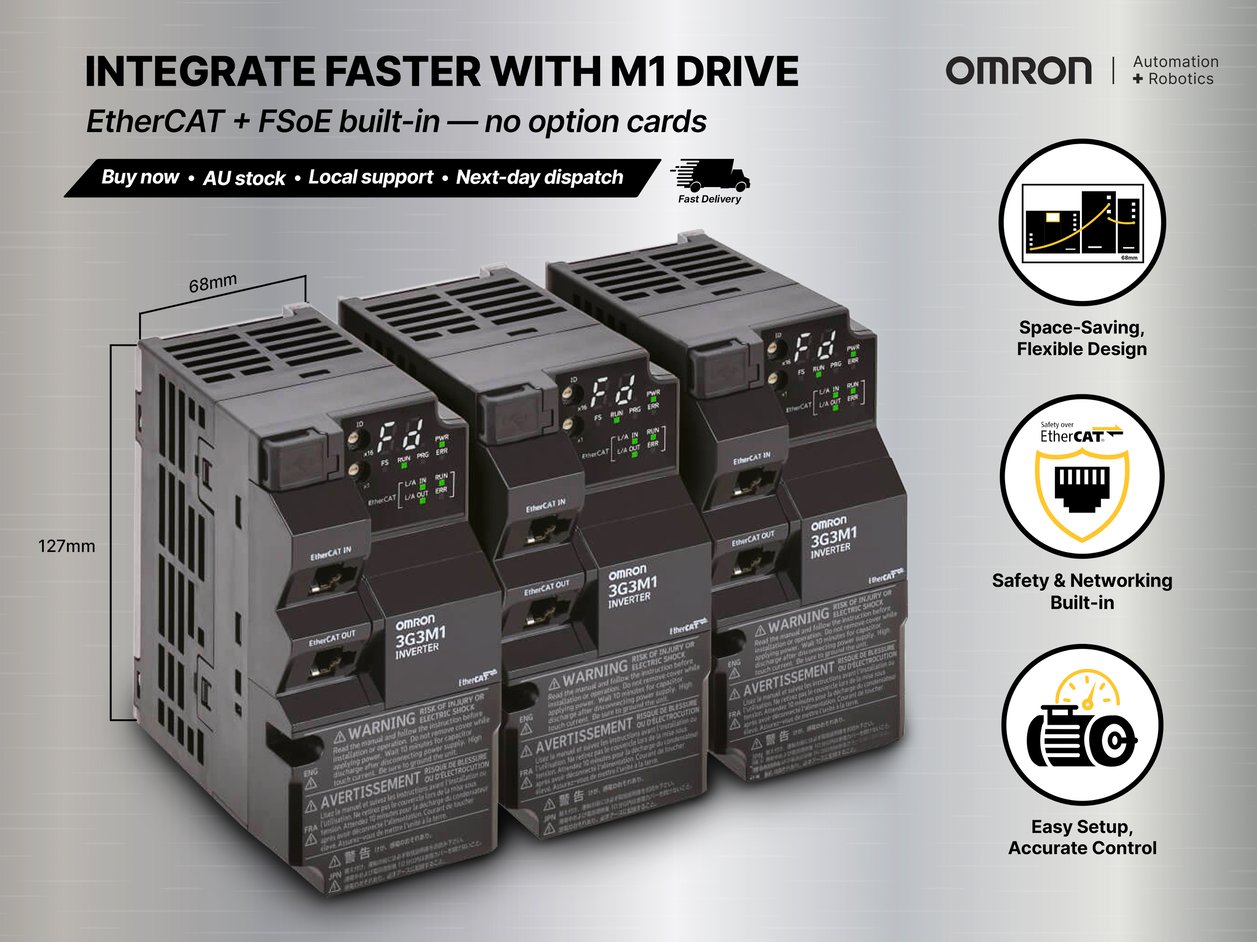

•  Slim frames from 68 mm W × 127 mm H at the low end
•    Supports induction motors, permanent magnet motors, direct drive PM motors, and special motors such as drum motors
•    Supports ring topologies in EtherCat models
•    24 VDC control power backup keeps communication and control alive during mains power dips

M1 ICONS 1

•    V/f and vector control (open & closed loop)
•    Torque, speed, and position control with electronic gearing
•    Built in encoder / pulse counter and energy saving functions
•    Single software for setup, tuning, and monitoring
•    Up to 200% torque at 0.5 Hz

M1 Variable Speed Drive vs Competitors


Area OMRON M1 Drive Series Typical Compact Drives
Networking Built in by model (Modbus, EtherCAT, or Ethernet Multi‑Protocol) Usually limited; others need option cards
Safety STO as standard; FSoE integrated on EtherCAT models Often external or optional
Integration effort Faster setup with native communications and one software tool More wiring, add‑ons, and tools
Cabinet space Slim design from 68 mm wide Larger, less consistent footprints
Motor & control flexibility IM & PM motors with speed, torque, and position functions Typically IM only, speed control
Scalability One drive series across machine architectures Multiple drive families often required

Disclaimer: Comparisons are indicative; verify per model and application.



Specifications


Category Details
Models Standard (STD): 3G3M1-Axxxx
EtherCat (ECT): 3G3M1-Axxxx-ECT
EtherNet Multi-Protocol (EMP): 3G3M1-Axxxx-EMP
Power & Mains 1P 200 V: 0.2–3.7 kW (ECT from 0.2 kW)
3P 200 V: up to 22 kW (ND / HD / HHD)
3P 400 V: 0.4–22 kW
Control Modes V/f and vector control (open & closed loop)
Maximum output frequency: 590 Hz
Motor Types Induction (IM) and Permanent Magnet (PM) motors
Safety M1 STD: STO (wired)
M1 ECT: STO via FSoE + wired
Safety level: SIL3 / PL e
Networks & Communication STD: RS‑485 Modbus RTU + USB
ECT: EtherCAT Slave + USB
EMP: EtherNet/IP, PROFINET, Modbus TCP + USB
 Encoder / Pulse Input Built‑in encoder / pulse counter input for feedback and speed functions
 Control Power & Backup 24 VDC control power maintains communication and control during mains voltage dips
 Commissioning & Tools USB commissioning via Sysmac Studio
Program download without mains power
Built‑in trace and diagnostics
 Advanced Functions  Energy‑saving modes
Speed, torque, position control and electronic gearing (configuration‑based)
 Enclosure & Size IP20
Slim frames from 68 mm W × 127 mm H; larger frames scale consistently



Compliance

RCM (Australia & New Zealand), CE (Europe), UKCA (UK), cULus (US & Canada), KC (Korea), and RoHS (Hazardous Substances Restriction).

Future-Proof

Designed for 10 years of 24/7 maintenance-free operation.



How to Select Your M1 Drive

M1 STD (Standard)
For Modbus RTU applications requiring cost‑effective control and wired STO.

M1 ECT (EtherCAT)
For EtherCAT systems requiring real‑time communication and integrated FSoE safety.

M1 EMP (EtherNet Multi‑Protocol)
For Ethernet‑based PLC environments using EtherNet/IP, PROFINET, or Modbus TCP.

One Series. Three Practical Integration Paths.
The M1 Series helps standardise drive selection across machines while reducing engineering effort, cabinet size, and system complexity.

Duty guide: ND for pumps & fans | HD / HHD for conveyors, indexing, and higher‑inertia loads

Quick Select - All Models In Stock

1.Standard (STD) | 2.EtherCAT (ECT) | 3.EtherNet Multi-Protocol (EMP)

1. STANDARD (STD) MODEL

Standard Model Drive Supply Voltage Max. motor output (constant torque)  Price (ex GST. AU$) Buy Now
3G3M1-AB002
 230 V single-phase 0.2 kW $245.00
3G3M1-AB004 0.4 kW $245.00
3G3M1-AB007 0.7 kW $292.00
3G3M1-AB015 1.5 kW $339.00
3G3M1-AB022 2.2 kW $405.00
3G3M1-AB037 3.7 kW $660.00
3G3M1-A4004 400 V three-phase 0.4 kW $371.00
3G3M1-A4007 0.7 kW $371.00
3G3M1-A4015 1.5 kW $407.00
3G3M1-A4022 2.2 kW $461.00
3G3M1-A4030 3 kW  $515.00
3G3M1-A4040 4 kW  $525.00
3G3M1-A4055 5.5 kW $706.00
3G3M1-A4075 7.5 kW $814.00
3G3M1-A4110 11 kW $1,321.00
3G3M1-A4150 15 kW $1,521.00
3G3M1-A4185 18.5 kW $2,155.00
3G3M1-A4220 22 kW $2,264.00

2. ETHERCAT (ECT) MODEL

EtherCAT Model Drive Supply Voltage Max. motor output (constant torque)  Price (ex GST. AU$) Buy Now
3G3M1-AB002-ECT
 230 V single-phase 0.2 kW $358.00
3G3M1-AB004-ECT 0.4 kW $358.00
3G3M1-AB007-ECT 0.7 kW $433.00
3G3M1-AB015-ECT 1.5 kW $489.00
3G3M1-AB022-ECT 2.2 kW $546.00
3G3M1-AB037-ECT 3.7 kW $811.00
3G3M1-A4004-ECT 400 V three-phase 0.4 kW $479.00
3G3M1-A4007-ECT 0.7 kW $488.00
3G3M1-A4015-ECT 1.5 kW $506.00
3G3M1-A4022-ECT 2.2 kW $579.00
3G3M1-A4030-ECT 3 kW $633.00
3G3M1-A4040-ECT 4 kW $650.00
3G3M1-A4055-ECT 5.5 kW                 $851.00
3G3M1-A4075-ECT 7.5 kW                 $941.00
3G3M1-A4110-ECT 11 kW               $1,458.00
3G3M1-A4150-ECT 15 kW               $1,675.00
3G3M1-A4185-ECT 18.5 kW               $2,327.38
3G3M1-A4220-ECT 22 kW               $2,408.00

3. ETHERNET MULTI-PROTOCOL (EMP) MODEL

EtherNet Multi-Protocol Model Drive Supply Voltage Max. motor output (constant torque)  Price (ex GST. AU$) Buy Now
3G3M1-AB002-EMP
 230 V single-phase 0.2 kW $393.00
3G3M1-AB004-EMP 0.4 kW $397.00
3G3M1-AB007-EMP 0.7 kW $480.00
3G3M1-AB015-EMP 1.5 kW $535.00
3G3M1-AB022-EMP 2.2 kW $601.00
3G3M1-AB037-EMP 3.7 kW $927.00
3G3M1-A4004-EMP 400 V three-phase 0.4 kW $546.00
3G3M1-A4007-EMP 0.7 kW $558.00
3G3M1-A4015-EMP 1.5 kW $584.00
3G3M1-A4022-EMP 2.2 kW $657.00
3G3M1-A4030-EMP 3 kW $711.00
3G3M1-A4040-EMP 4 kW $724.00
3G3M1-A4055-EMP 5.5 kW                 $958.00
3G3M1-A4075-EMP 7.5 kW               $1,066.00
3G3M1-A4110-EMP 11 kW               $1,641.00
3G3M1-A4150-EMP 15 kW               $1,901.00
3G3M1-A4185-EMP 18.5 kW               $2,725.00
3G3M1-A4220-EMP 22 kW               $2,826.00

INPUT FILTERS

Standard Line Filter Model  Voltage  Compatible Model 3G3M1-A[] Price (ex GST. AU$) Buy Now
AX-FIC1010-SE





200 V single-phase




 B001 to B004 $20.00
AX-FIC1014-SE B001 to B007 $60.78
AX-FIC1021-SE B015 $89.08
AX-FIC1026-SE B022 $112.14
AX-FIC1045-SE B037 $173.96
AX-FIC4004-SE





400 V three-phase




 4004/4007 $81.74
AX-FIC4011-SE 4015/4022 $111.08
AX-FIC4017-SE 4030/4040 $123.66
AX-FIC4044-SE 4055/4075 $278.76
AX-FIC4061-SE 4110/4150 $504.08
AX-FIC4095-SE 4185/4220 $607.84


Applications By Industry

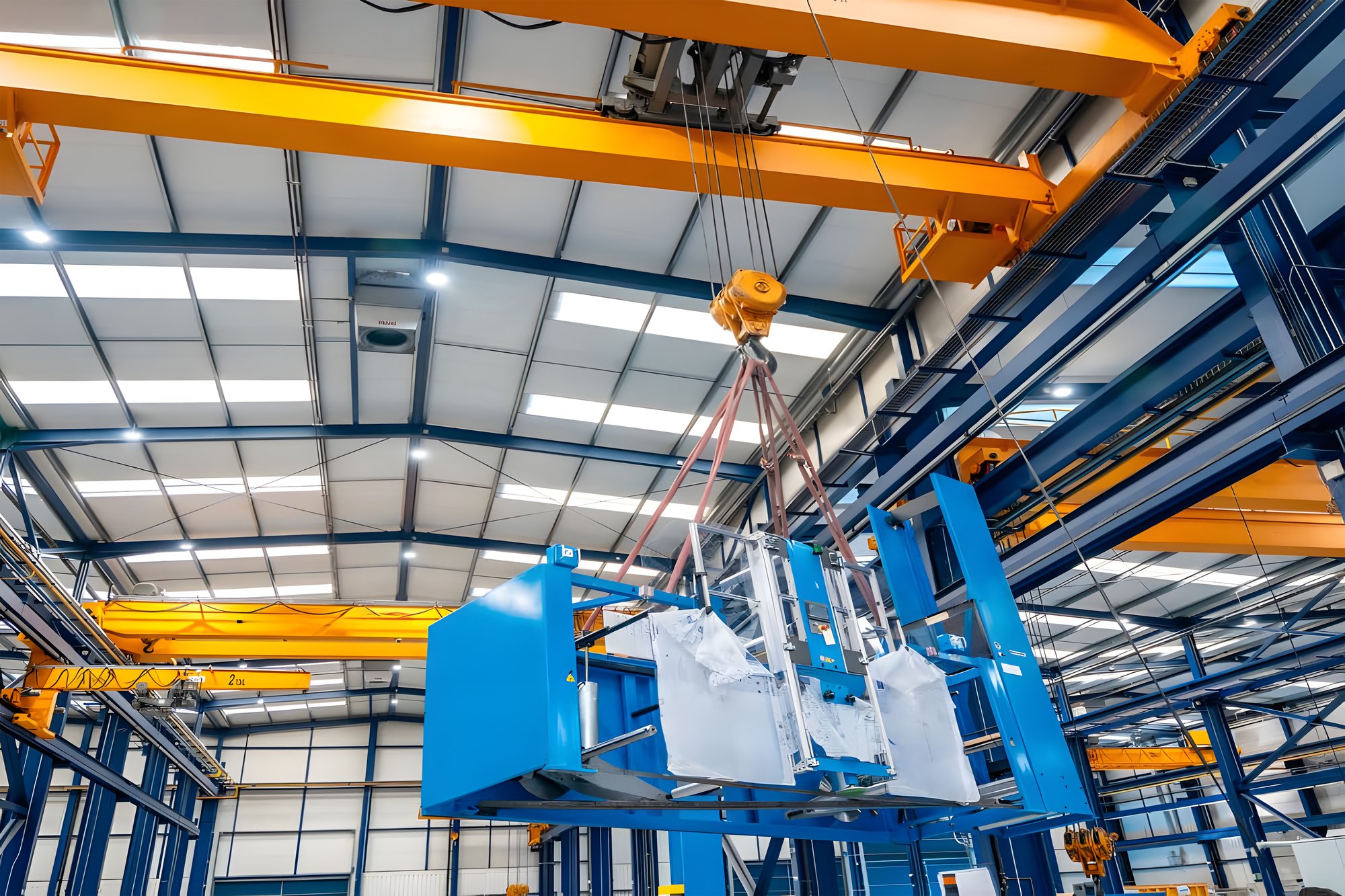

4. Lifting Application

Lifting Application

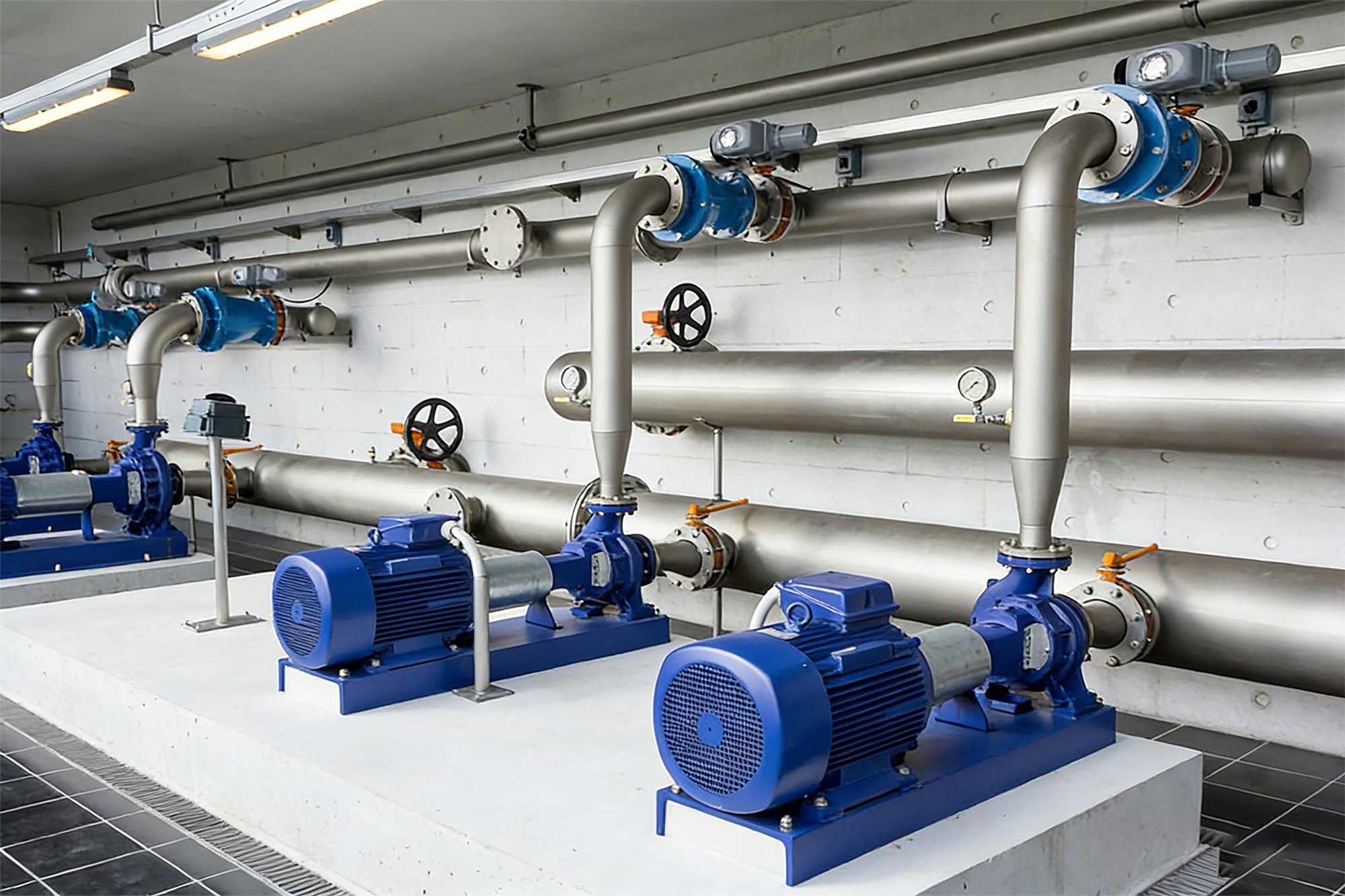

5. Infrastructure Application

Infrastructure Application

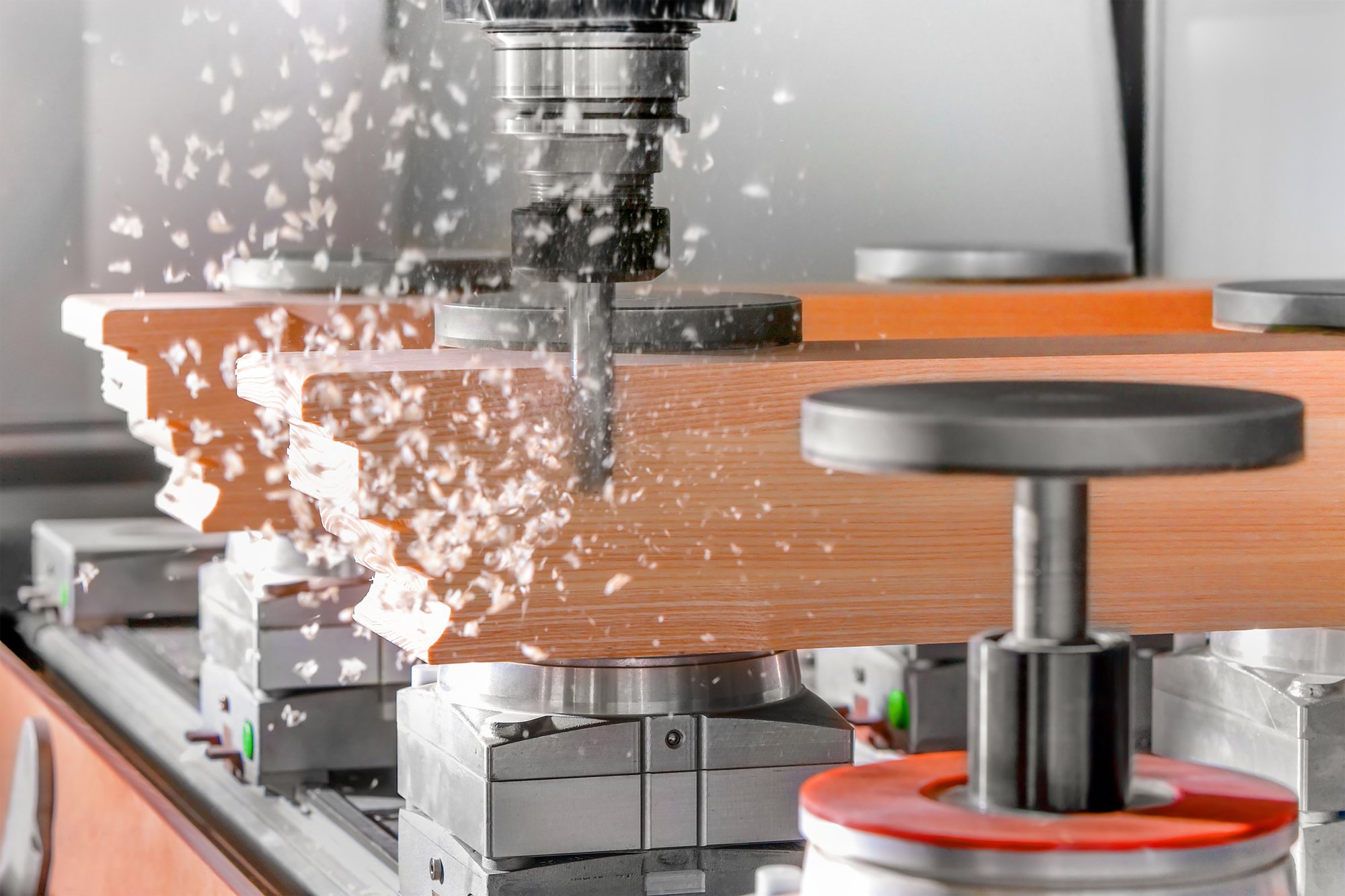

6. Machine Tools Applications

Machine Tools Applications

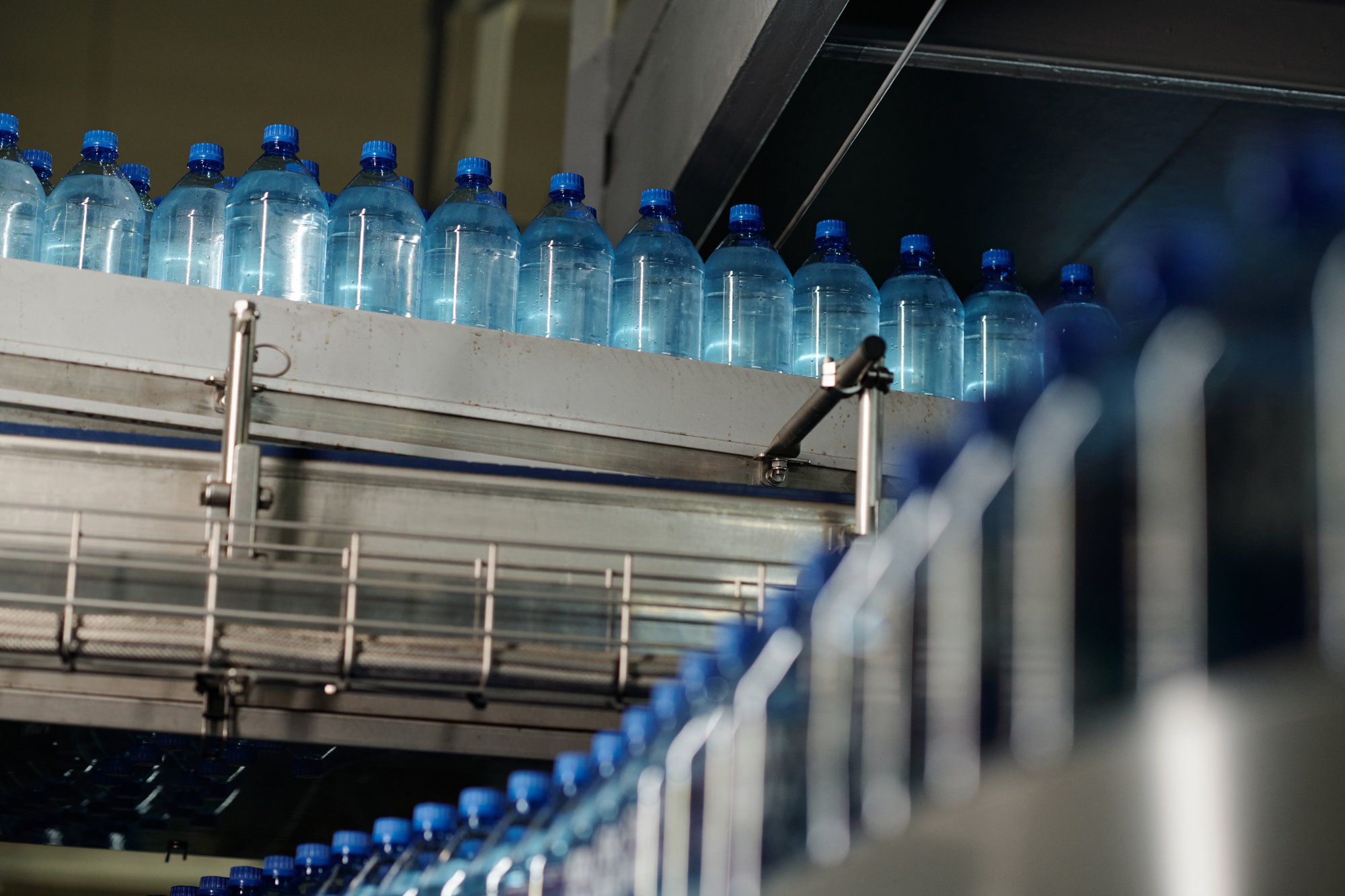

1. Material Handling Applications

Material Handling Applications

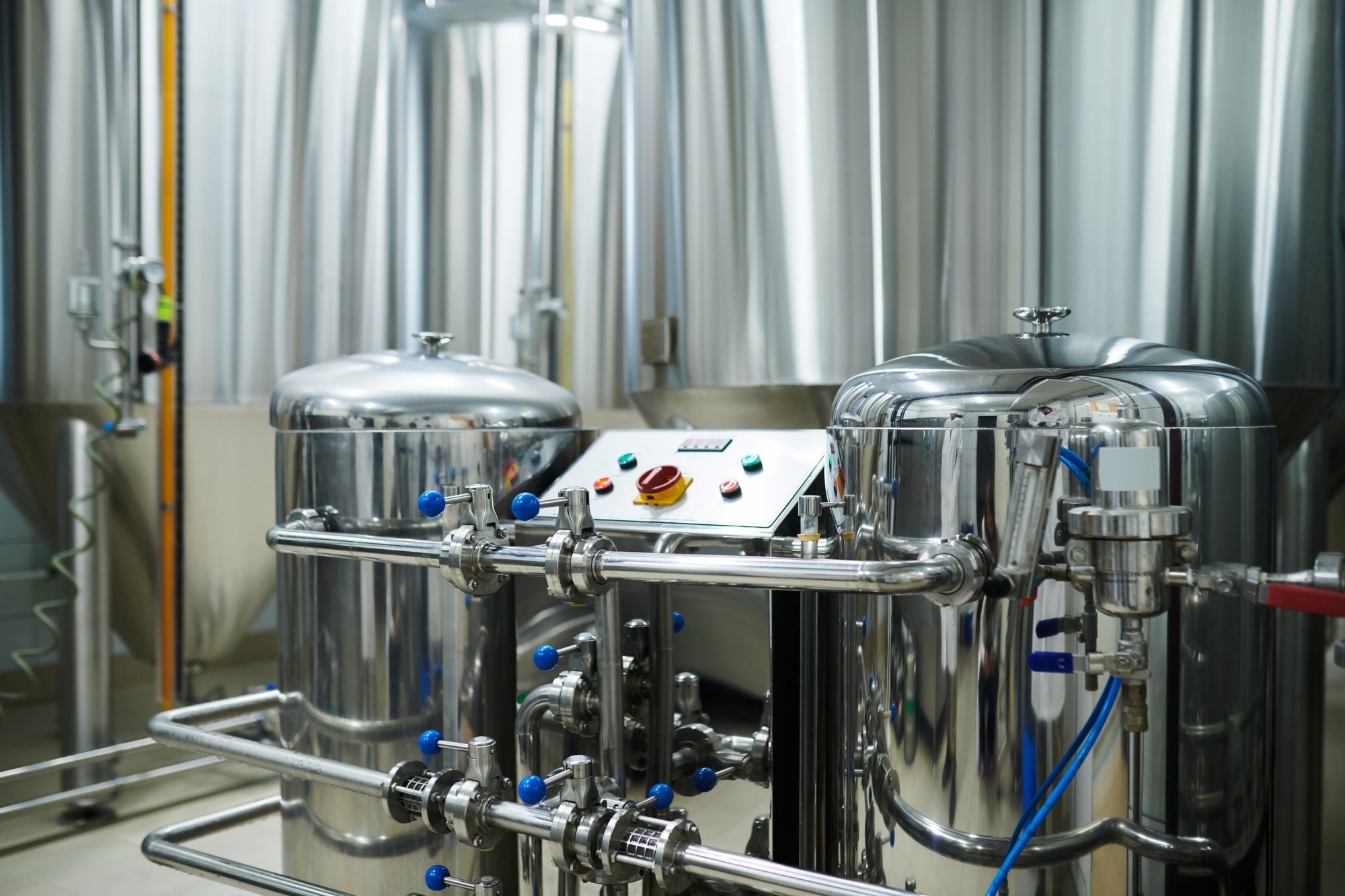

2. Process Equipment

Process Equipment

3. Primary, Secondary and Final Packaging

Primary, Secondary, and Final Packaging

 Ready to power your machines with ease, speed, and safety?

Buy now • AU stock • Direct local support • Next-day dispatch • 24-Month Local Warranty
